Anatomy of Residential Irrigation Sprinkler Systems

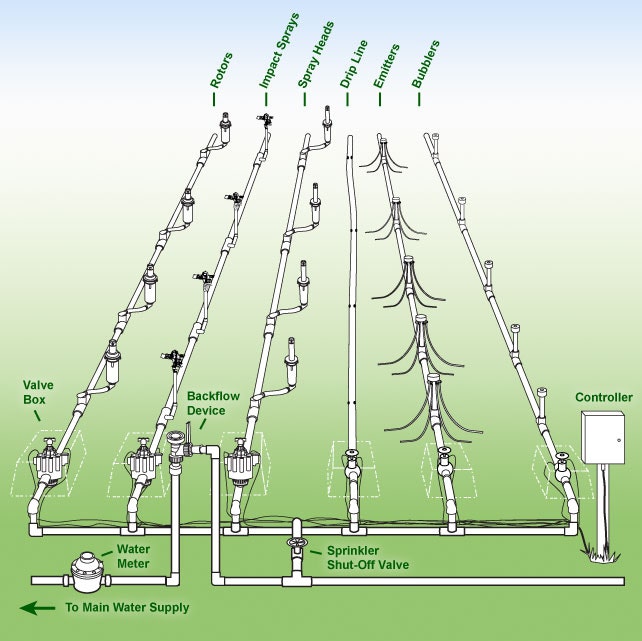

The illustration below is not a typical irrigation layout. It displays the possible essential components that can be implemented in a irrigation system. The three rows on the right show aspects of drip irrigation. In an actual irrigation installation spacing and device configuration would be altered to suit the landscape design.
